Component from a scrap 128K board needed
Hello,

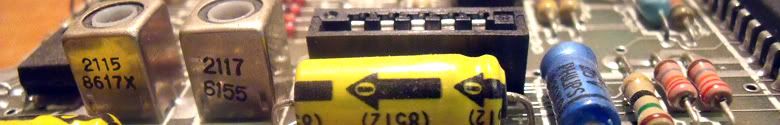

I'm in desperate search of the most left component shown in the following picture. (2115 8617X, probably only the 2115 number has to do with the component's properties).
Its a combination of a coil and a ceramic capacitor (I accidentally ruined both of them and now I can't get a stable RGB picture on my toastrack :( with lots of interference)
Since these components are nowhere to be found these days (and I searched a lot), the only solution is to find one from a scrap board.

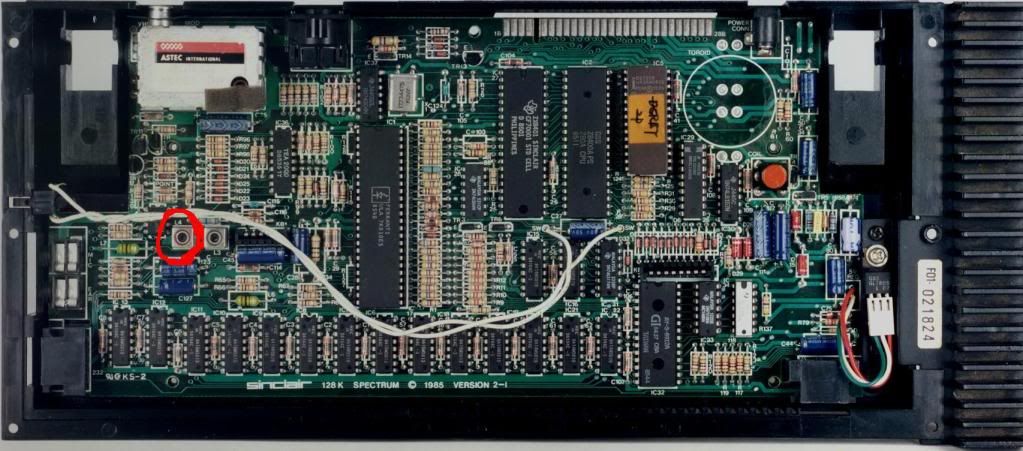

There are two of those (2115) on a 128K toastrack board, one is shown in the picture and another one to the right of the RF modulator but on some versions this one isn't there, like on the picture below.
Please, if someone has a scrap board and is willing to help me out with this component I would be greatful and willing to pay for whatever expenses.
Maybe there is an equivalent on a +2 gray board but I'm not sure about that. I mean there is one that does the same job but I'm not sure if it is of the same specs.
Thank you
