Ordered on 10th of march, but Noby mailed he didn't have anymore pcb's in stock at that time and was waiting for new ones to come in. So i guess he's doing good business, and we just need to have some patience :)
- switch for connect +5V to IDE pin 20 (is possible connect new CFtoIDE adapters without modification
- power connector on DiviIDE board (3.5" FDD style) for small xxtoIDE adapters
- ZX reset button
- IDE reset button (reset only IDE device - on SDtoIDE adapter is possible remove SD cards, after connect card only press reset ide button)
- possibility use classic or slim sram memory package
- switch for use on TK90X/TK95 computers (Brasilian 60Hz ZX clones)
- boosted signals MREQ,IORQ,RD,WR,RESET,A14,A15
- jumper for disable MREQ to DIVIDE (disable memory access)
- added holes for screws to plastic case
- possibility switch to IDE ports only (complette disable external memory and DIVIDE work as IDE ports only) for +2E/+3E use
I bought one from Noby, as you stated this board & design is not going to be available to anybody else but your friends. It's too bad really, why don't you consider selling to other areas?
I bought one from Noby, as you stated this board & design is not going to be available to anybody else but your friends. It's too bad really, why don't you consider selling to other areas?
This PCB version need final testing. If will stable, then I can make small series for WOS. Ideally as kit (PCB + components + manual). If anyone interested please contact me on SPRINTER2000(a).QUICK(dot)CZ
This PCB version need final testing. If will stable, then I can make small series for WOS. Ideally as kit (PCB + components + manual). If anyone interested please contact me on SPRINTER2000(a).QUICK(dot)CZ
I might go for it, but soldering that smd 74LS245DW bus transceiver could make for some sweat and tears. :-)
Sorry, but I have no time for soldering and testing. Can be later...
Is possible use EEPROM,SRAM,GAL chips and all 74XX components from original DivIDE to new DivIDE board. But M-GAL and R-GAL chips contain new firmware.
Price of components is approximately 27-33 USD + 22 USD one PCB = total 49-55 USD (kit).
And here is JOYSTICK INTERFACE specially designed for DIVIDE 57d:
This small CPB is connect to EEPROM socket.
Support switching between KEMPSTON and SINCLAIR joystick. Contain jumper for DISABLE/ENABLE joystick.
9 pin joystick connector support up to 3 fire buttons, use +5V and GND pins(good for joysticks with autofire support). Possible connect real AMIGA MOUSE, Atari/Amiga joystick.
Data bus is connect with ZX bus via resistors (protection against collisions).
Joystick port return full 8 bit data value.
This PCB can be connect also to original DivIDE interface, but need add two diodes+resistor.
Received part of a divIDE from this site, but missing the piece that allows the flash card to connect. Thinking he just forgot to put it in there. Has anyone else had this happen? Additionally, can't find a good email for contacting him - does anyone have one?
Received part of a divIDE from this site, but missing the piece that allows the flash card to connect. Thinking he just forgot to put it in there. Has anyone else had this happen? Additionally, can't find a good email for contacting him - does anyone have one?
Well, Noby sends you an email when you order, and when your order is sent out. Check you spam box. Since we don't know what your ordered, i can't say if the cf adapter is missing/forgotten. It's not a standard part on normal pcb order.
Mine has the part, but i'm a lazy guy and bought one from him complete in box w/512 cf which got here today woohoo!
Well, Noby sends you an email when you order, and when your order is sent out. Check you spam box. Since we don't know what your ordered, i can't say if the cf adapter is missing/forgotten. It's not a standard part on normal pcb order.
Mine has the part, but i'm a lazy guy and bought one from him complete in box w/512 cf which got here today woohoo!
Ah, that might explain it then. Didn't know the adapter was a separate order.
Comments
Here is photos of first prototype of DivIDE 57d:
http://www.victortrucco.com/tk/divideblue/divideblue.asp (it's only prototype for testing, final version will later)

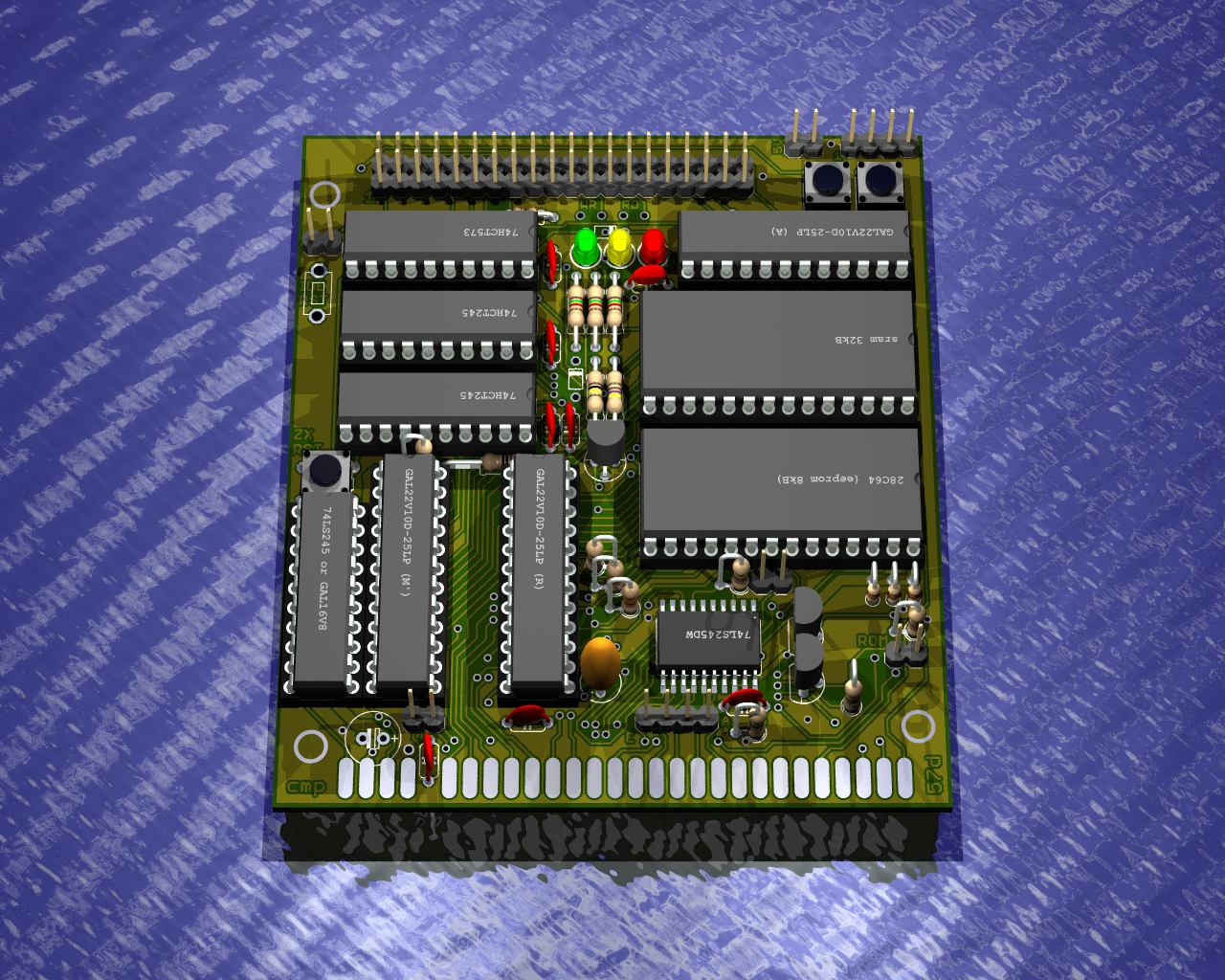

3D picture of last DivIDE 57d project
This PCB version need final testing. If will stable, then I can make small series for WOS. Ideally as kit (PCB + components + manual). If anyone interested please contact me on SPRINTER2000(a).QUICK(dot)CZ
I might go for it, but soldering that smd 74LS245DW bus transceiver could make for some sweat and tears. :-)
/Pedro
This SMD chip will on all DivIDE boards soldered. ;-)
If it helps, I would be interested in a couple of blank PCB's I have all the components to build them here.
What do you expect the price to be?
PCB + 74LS245(SMD) = 23 USD
PCB only = 22 USD
Postage 8 USD
If thats for two PCB's then please count me in :D
2x PCB (without 74LS245) = 44 USD + 8 USD postage
If you need add 2x 74LS245(smd) then + 2 USD
Sorry, but I have no time for soldering and testing. Can be later...
Is possible use EEPROM,SRAM,GAL chips and all 74XX components from original DivIDE to new DivIDE board. But M-GAL and R-GAL chips contain new firmware.
Price of components is approximately 27-33 USD + 22 USD one PCB = total 49-55 USD (kit).
Okay, got an email today that it was en-route. Cool beans.

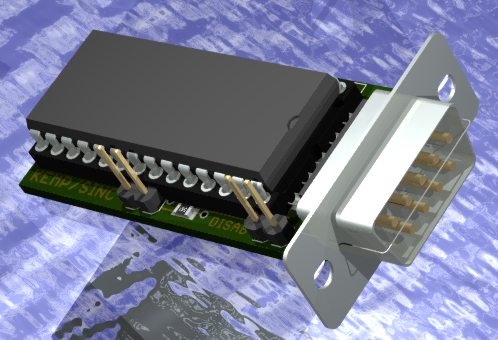

And here is JOYSTICK INTERFACE specially designed for DIVIDE 57d:
This small CPB is connect to EEPROM socket.
Support switching between KEMPSTON and SINCLAIR joystick. Contain jumper for DISABLE/ENABLE joystick.
9 pin joystick connector support up to 3 fire buttons, use +5V and GND pins(good for joysticks with autofire support). Possible connect real AMIGA MOUSE, Atari/Amiga joystick.
Data bus is connect with ZX bus via resistors (protection against collisions).
Joystick port return full 8 bit data value.
This PCB can be connect also to original DivIDE interface, but need add two diodes+resistor.
DivIDE 57d2 (left) versus original DivIDE 57c (right)

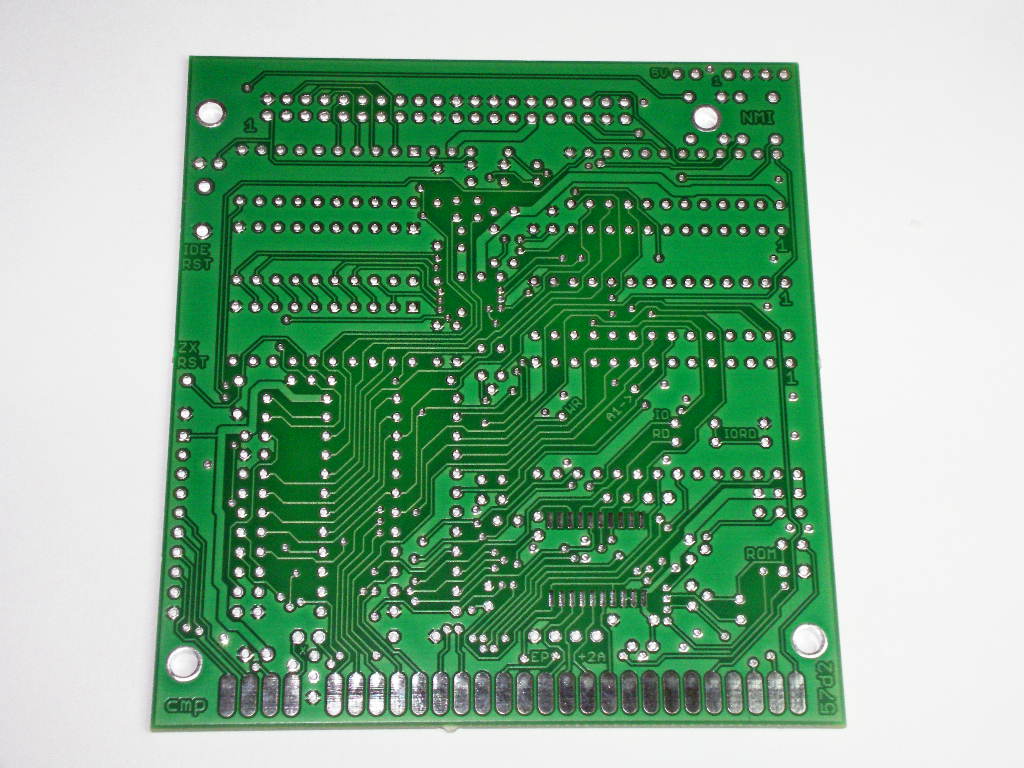

TOP side

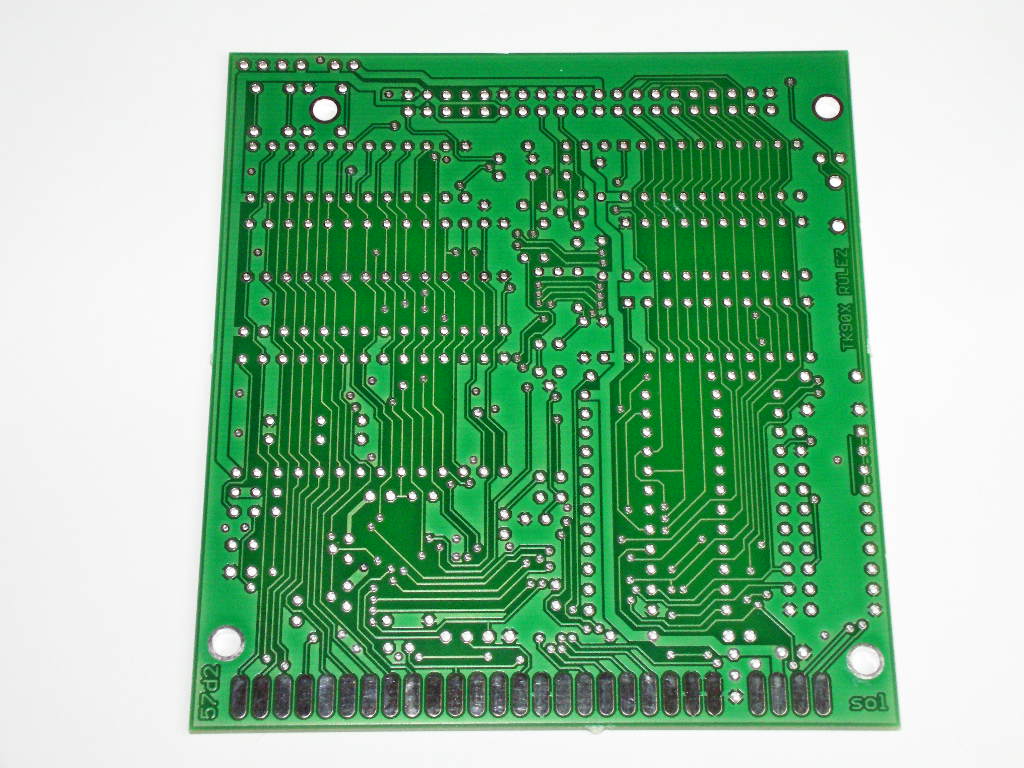

BOTTOM side
A joystick port to plug on divIDE!
If so when can we buy one.... :)
I want one with Timex rulez :P
No problem. I can rewrite text to TIMEX rulez... :-)
Cool! Hehehe.
Mine has the part, but i'm a lazy guy and bought one from him complete in box w/512 cf which got here today woohoo!
Ah, that might explain it then. Didn't know the adapter was a separate order.
Price of PCB with soldered chip 74LS245(SMD) - 22 USD
Components - 33 USD
Postage - 8 USD
Complette DivIDE (tested) - 69 USD
(PayPal only)

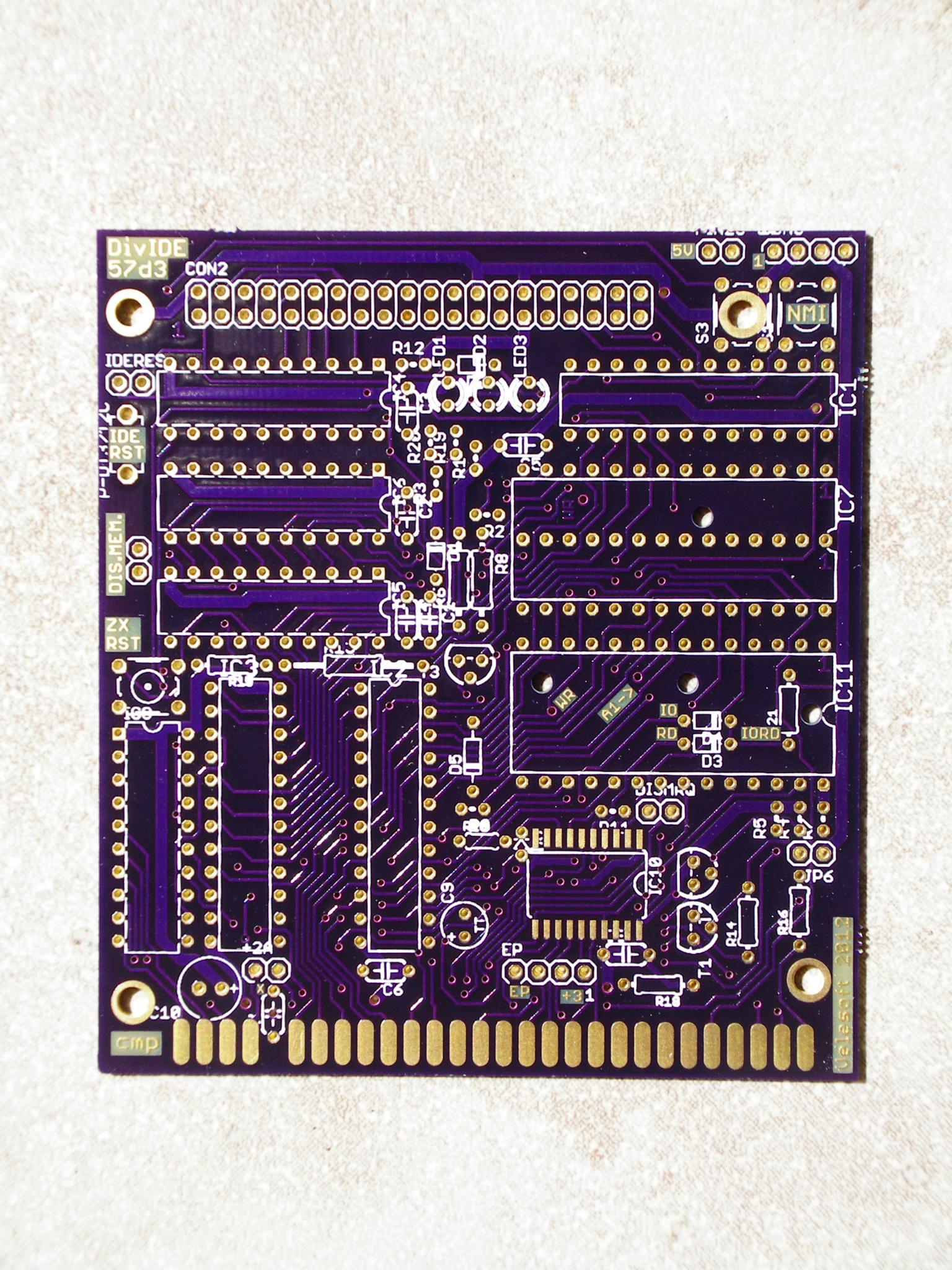

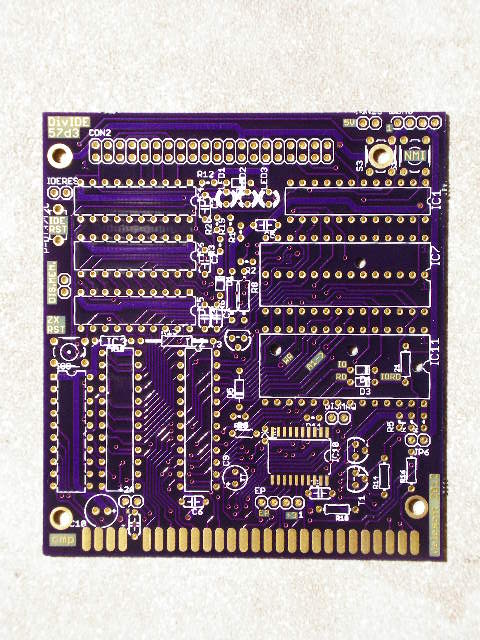

http://velesoft.speccy.cz/other/divide57d3_top_hires.jpg
http://velesoft.speccy.cz/other/divide57d3_bottom_hires.jpg

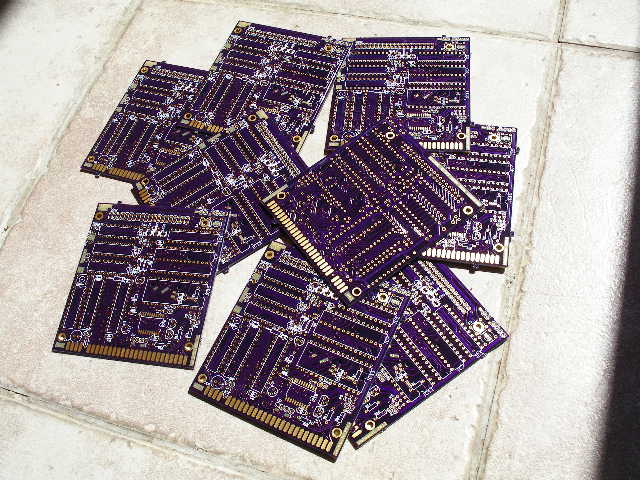

http://velesoft.speccy.cz/other/divide57d3_pcb_hires.jpg
I'm in for one. Sent you a private message.
/Pedro
New official version of ESXDOS system:
http://www.worldofspectrum.org/forums/showthread.php?t=38991
